Quarry Chain Saw Machine

$299,100

Description

Usage:Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time:30 days after the order is effective.

Warranty:12 Months

Install and Guarantee:Remote guidance installation

Maintenance:Remote troubleshooting

Machinery Function Features

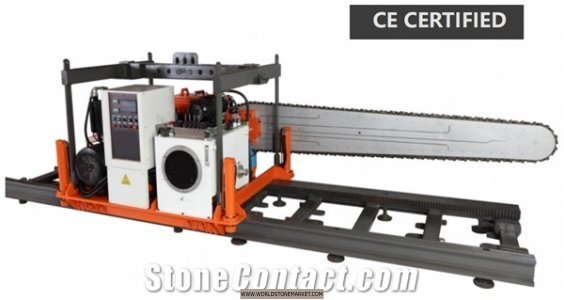

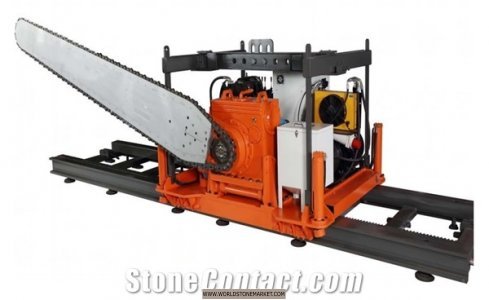

GD-CS3200 marble chain saw is the special marble quarrying equipment, which consists of a host, moving platform, rails, chain arm, chain, hydraulic system, electric control system, chain lubrication pump and other parts. Chain arm, cutting chain and the machine move on the rails, the machine can rapidly adjust oil cylinder action by the hydraulic pressure drive. The chain arm may rotate in 360 degree for vertical and horizontal cutting which can translate freely according to the mining requirement. The cutting chain is transmitted by motor through a gearbox, making stepless speed regulation within 0-1.2m/s by frequency control chain speed. The hydraulic motor drives the platform moving back and forth and the 360 degree rotation of chain arm, both having two speeds (fast and slow); The cutting speed can be adjusted according to the hardness of stone; The hydraulic system is equipped with automatic heating and air cooling device, which can ensure the equipment can work normally when the environment temperature difference is substantial; This equipment is suitable for quarrying the secondary level marble blocks.

Technical Data

Parameters	Unit	GD-CS2500	GD-CS3200	GD-CS4000	GD-CS7500
Movement speed on tracks	m/h	30	30	30	30
Dimensions	mm	3200x1800x1860	3200x2000x1860	3200x2000x1860	4000x2100x2100
Maximum cutting depth	mm	2500	3200	4000	7500
Installed power	kw	45	55	55	65
Cut width	mm	40	40	40	40
Total machine weight	Kg	5700	7100	7600	11000
Chain speed	m/h	0-4	0-4	0-4	0-4
